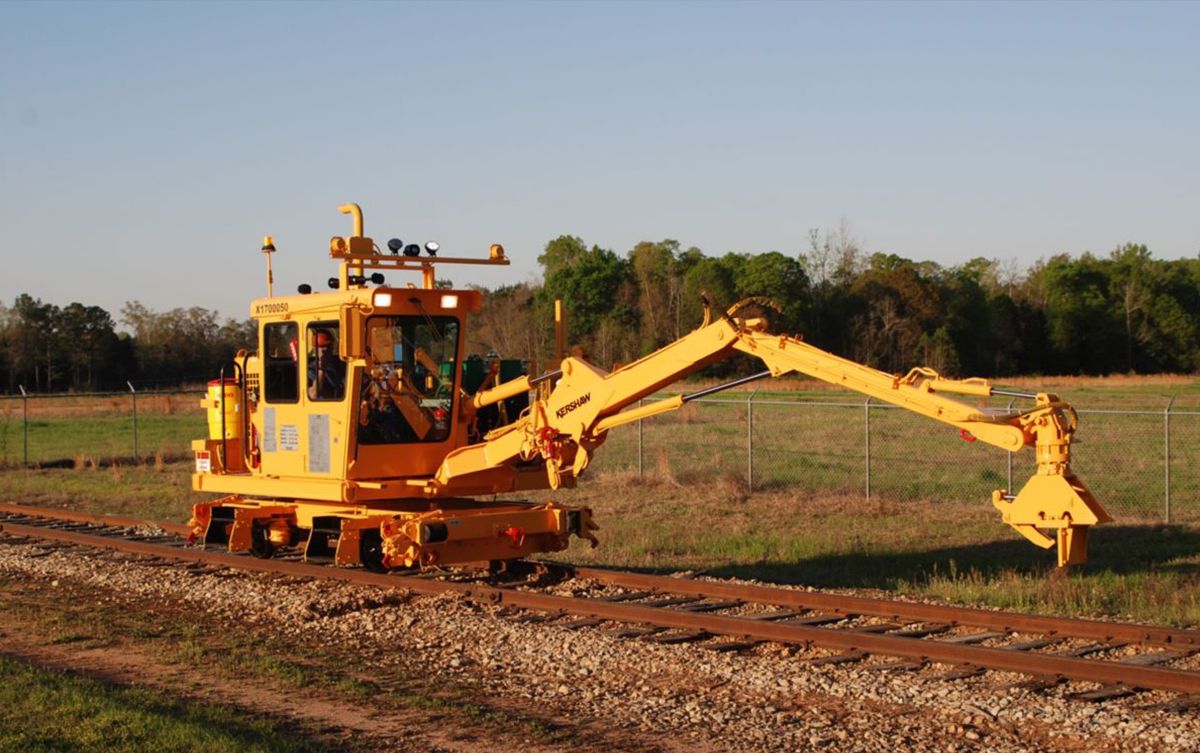

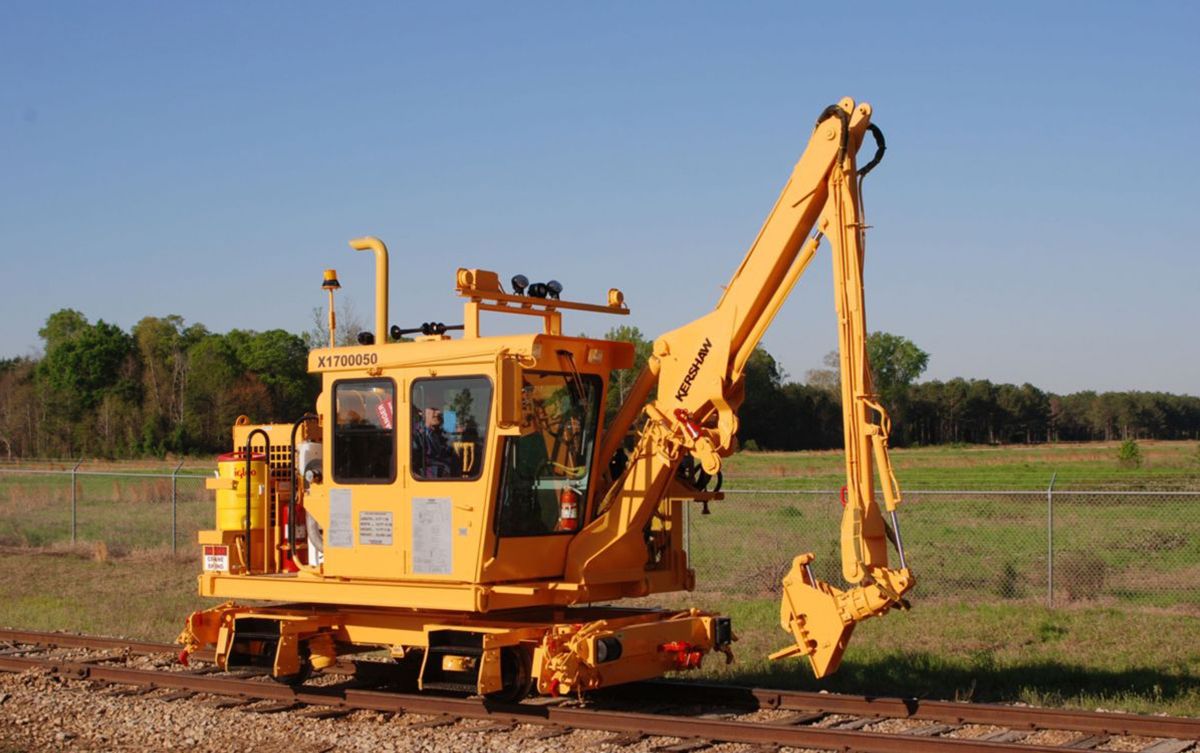

Technical Details
Frame
Welded construction, lower frame is structural steel and 1” (25.4 mm) thick steel plate for the slewing ring support. Upper deck is structural steel and formed deck plates. Frame covered by Five (5) Year Warranty. Oversize 46 7/8 inch diameter slewing ring rated for 80,000 ft-lb. Remote grease fittings for slewing ring and axle bearings. 8 channel 6,000 psi hydraulic swivel is accessible from the upper deck.
Engine
Caterpillar C4.4, 131 hp @ 2200 rpm Tier IV Final
Transmission and Axles
3” (76 mm) diameter solid axles with chain drive from separate hydraulic motors driving both axles. Travel speed: 20 mph (32 km/hr). Two (2) propel drive motors for quicker response in work mode. #100 drive chain with hardened tooth sprockets.
Hydraulic System
Hydrostatic propel system pressure compensated piston-type pump direct coupled to engine. Deck rotation by hydraulic motor through gearbox. Hydraulic oil is filtered through a 100 mesh (145 micron) suction screen and 10-micron return line filter. Manifold-type stack valves for improved serviceability. Remote oil cooler accessible from ground level with dual electric cooling fans. Electric emergency pump.
Electrical System
24VDC negative ground, 100 amp alternator, color-coded and numbered wiring.
Air System
Air compressor, engine oil-lubricated, air-cooled; pressure - 100-120 psi (689-927 kPa), 15-gallon air tank
Cab
Large enclosed cab with 99.5 cubic foot capacity. Ergonomically designed seat. Large front windshield with an unobstructed view of boom operation through full range of motion. Hydraulic pilot-pressure bottom-ported joystick controls on operator seat with heat shields. Self-contained hydraulically driven air conditioner/heater/pressurizer unit mounted on rear wall of cab (roof mount optional). Remote-controlled boom travel lock. Rubber suspension ladder steps. No service items located on cab roof on standard machine.
Wheels and Brakes
16” (406 mm) cast steel wheels. External, individual composite brake shoes applied directly on the vertical centerline of wheel tread. Service brakes are air applied, spring released. Emergency/parking brakes are spring applied, air released. Optional hydraulic brakes available.
Capacities
Fuel: 75 gal. (284 liters), Hydraulic: 70 gal. (265 liters)
Weight
23,000 lbs
Boom
Ultra-wide 32 inch (813 mm) spread base root boom mount. GV-12 grapple rotator. Equipped with 4,000 lb. capacity winch.
Optional Equipment
Basket grapple; single tie grapple; two tie grapple; timber grapple; concrete tie grapple; timber crane package; boom-mounted flail mower.
