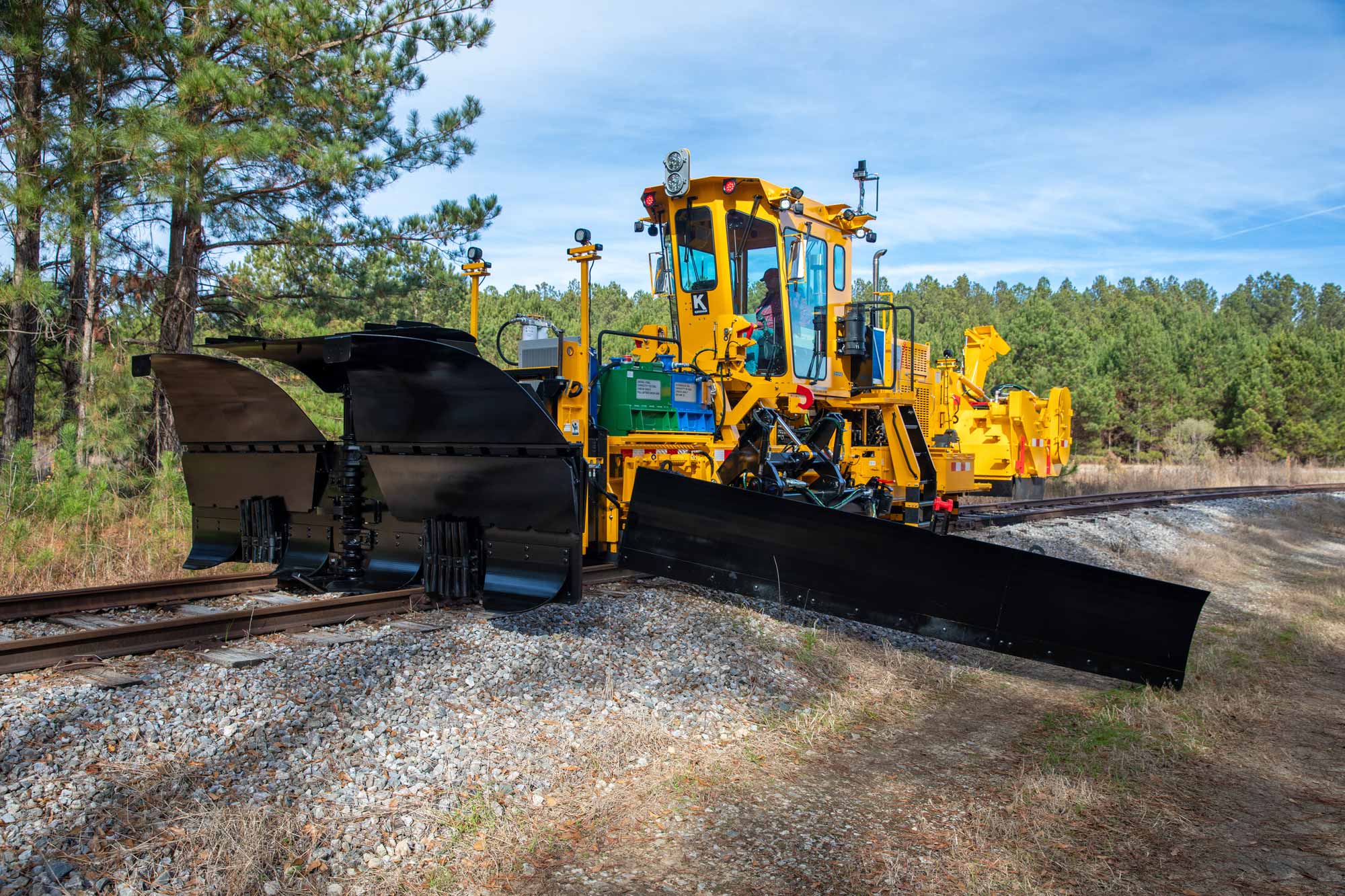

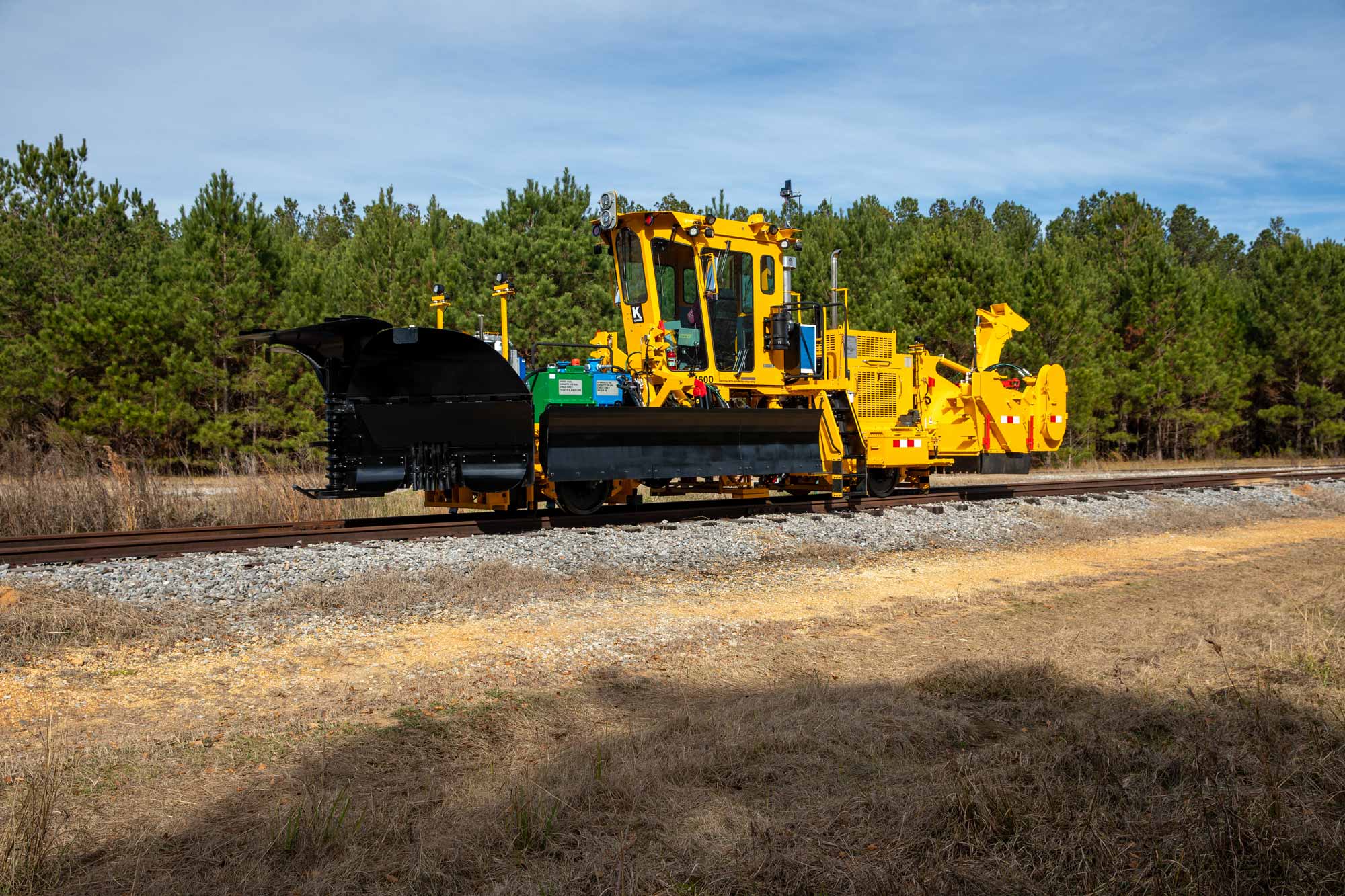

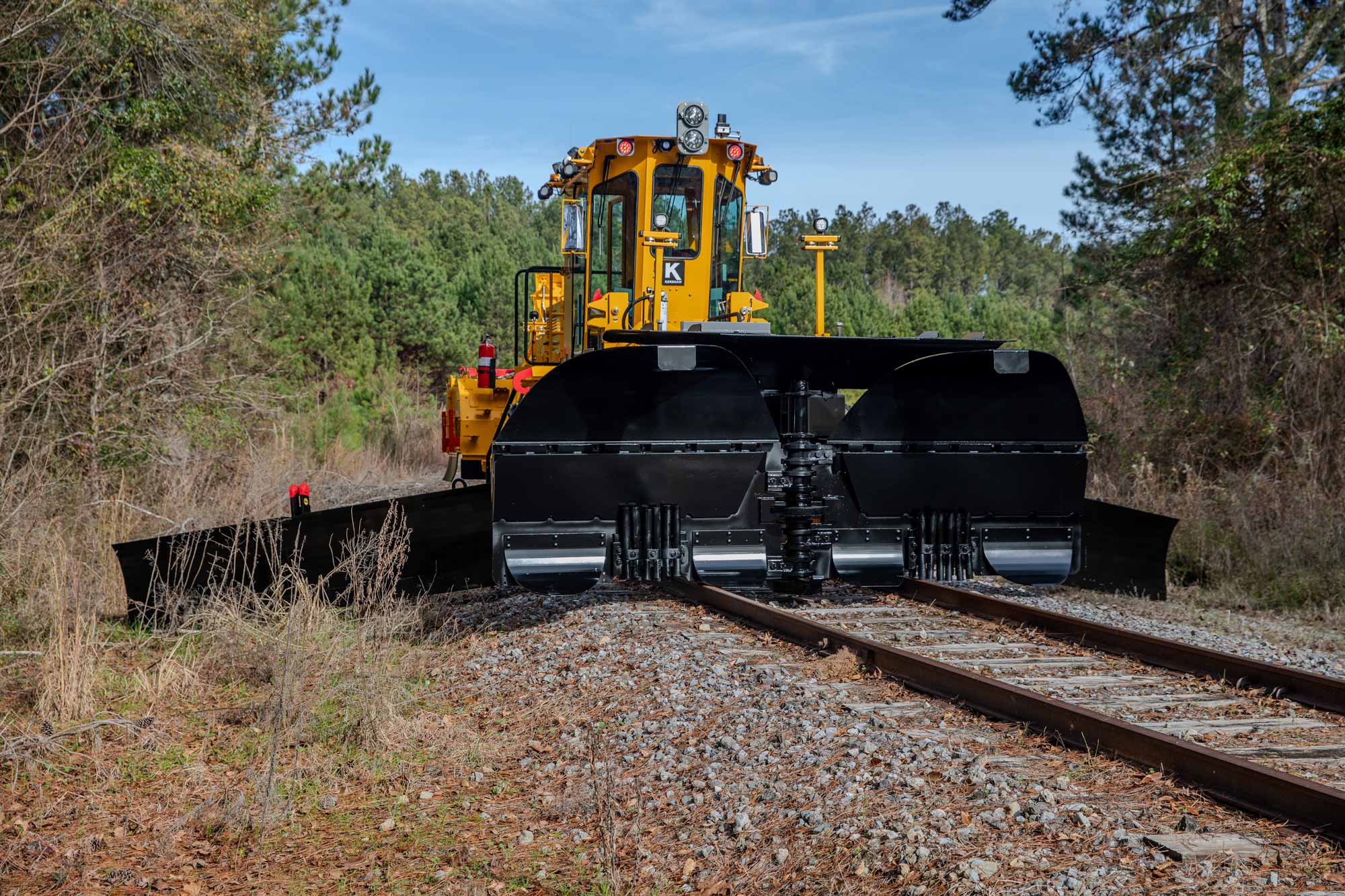

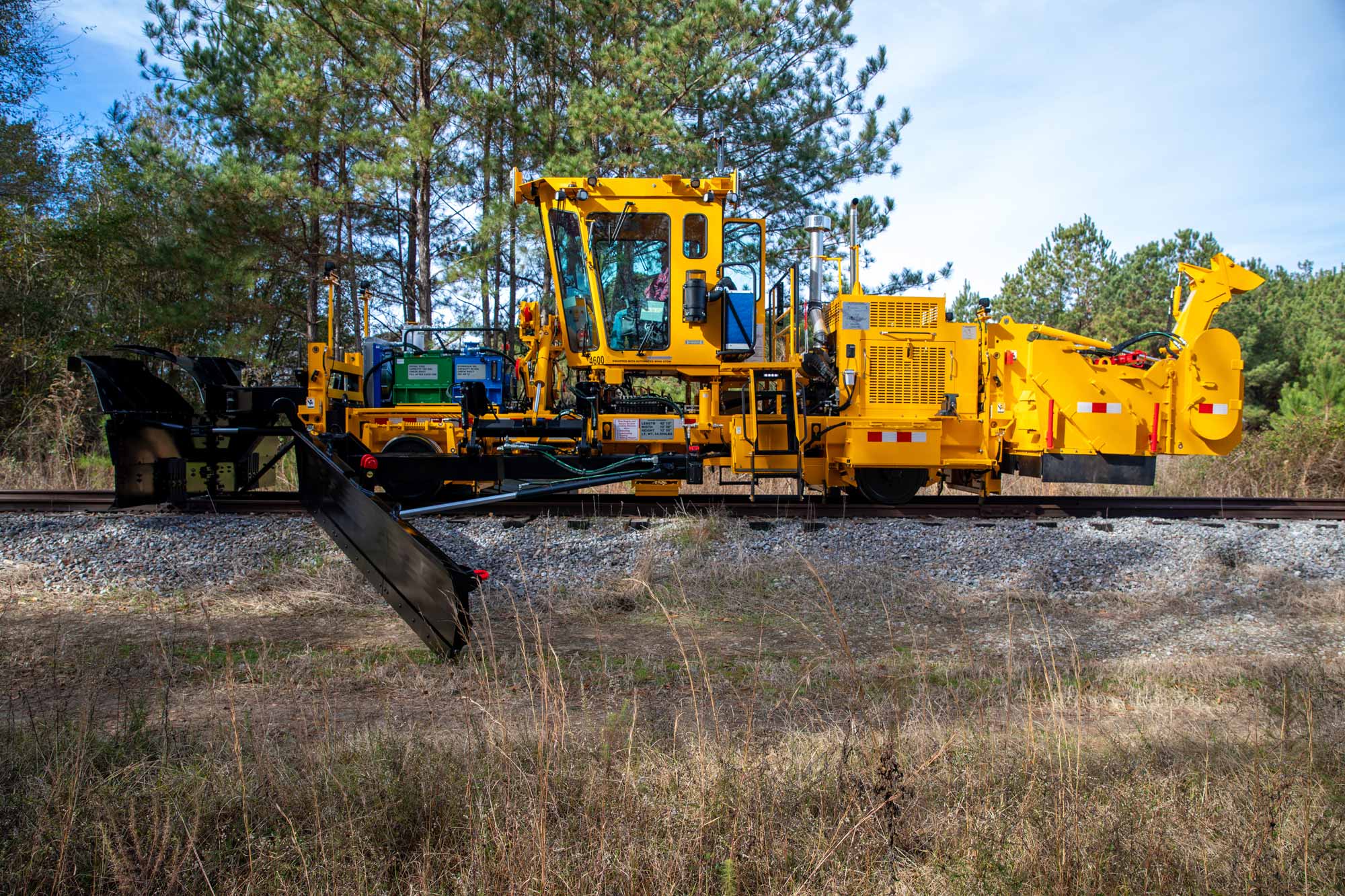

Model 60 Snow Remover

The Kershaw 60 Snow Fighter/Ballast Regulator is equipped with a one-pass transfer plow, 36” wide reversible wings, and a broom attachment for ballast maintenance. The ballast components are easily removed and replaced with snow components, converting the machine into a high-powered snow fighter. Snow attachments include a 10 ft. V-type snowplow, four season plow, benching-type snow wings, and a broom/snow switch cleaner attachment for snow removal from the track, inter-track, and track shoulder areas. With the addition of the optional Snow Switch Cleaner, snow can be removed from switches and propelled clear of the track.

This snow fighting machine is built for working in the harshest environments and is available with a wide variety of options for working in the most extreme environments.

Request a Quote

Technical Details

Frame

Welded construction using 4x12 solid steel side members and structural steel cross members.

Weight

50,020 lbs. (22689 kg)

Engine

Caterpillar C9.3B, 335 hp at 2200 rpm.

Propel System

Hydrostatic drive, variable displacement piston pump, variable displacement piston propel motor. Travel speed 50mph.

Transmission and Axles

Hydraulic propel motor powers a 4-speed “shift on the go” transmission. Dual propeller shafts, two (2) spring-mounted 30,000 lb. industrial type axles equipped with no spin differential. Equipped with 9 leaf spring suspension. A single control handle controls speed and direction in each range.

Wheels and Brakes

28" (711 mm) cast steel wheels bolted to each axle, external clasp brakes (two shoes per wheel). Service brakes; air applied/spring released. Parking brakes; spring-applied/air released.

Electrical System

24-volt dc negative ground,150 amp alternator, two 205 amp/hour batteries, color-coded and numbered wiring.

Air System

Air compressor, engine oil lubricated, camshaft driven, water-cooled, 13 ft. 3 in. free air volume at 1250 rpm. System pressure is 100-120 psi, 613 in.3 air tank. Service brakes are controlled by a pressure reducing valve and the parking brakes by a manually-operated dump valve. The system is also equipped with a dual-tone airhorn, safety relief valve.

Hydraulic System

Engine-powered pump drive with clutch; drives hydrostatic propel pump and pumps for controls and broom. Control circuit includes hydraulic, electric or manually controlled valves, and remote-mounted oil cooler. 100 mesh suction screens and 10 micron return filters. Electric emergency pump to operate selected circuits.

Cab

Extremely roomy cab. Fully enclosed and insulated with safety glass, dome light, dual front windshield wipers, and ergonomic seats. Cab access from either side of the machine. Equipped with a self-contained vertical mount sidewall heater/air conditioner. The cab is 75 inches wide and 88 inches high.

Capacities

Fuel: 122.5 gal (464 liters), Hydraulic: 98 gal (371 liters), Engine Crankcase: 7.4 gal (28 liters), Cooling System: 11 gal (41.6 liters), Pump Drive: 4-1/2 qt (4.2 liters), Transmission: 16 qt (14.6 liters).

Optional Equipment

Diesel fired fluid heaters, diesel fired cab heater, heated windows, shore power connection. Other options are available on request.
